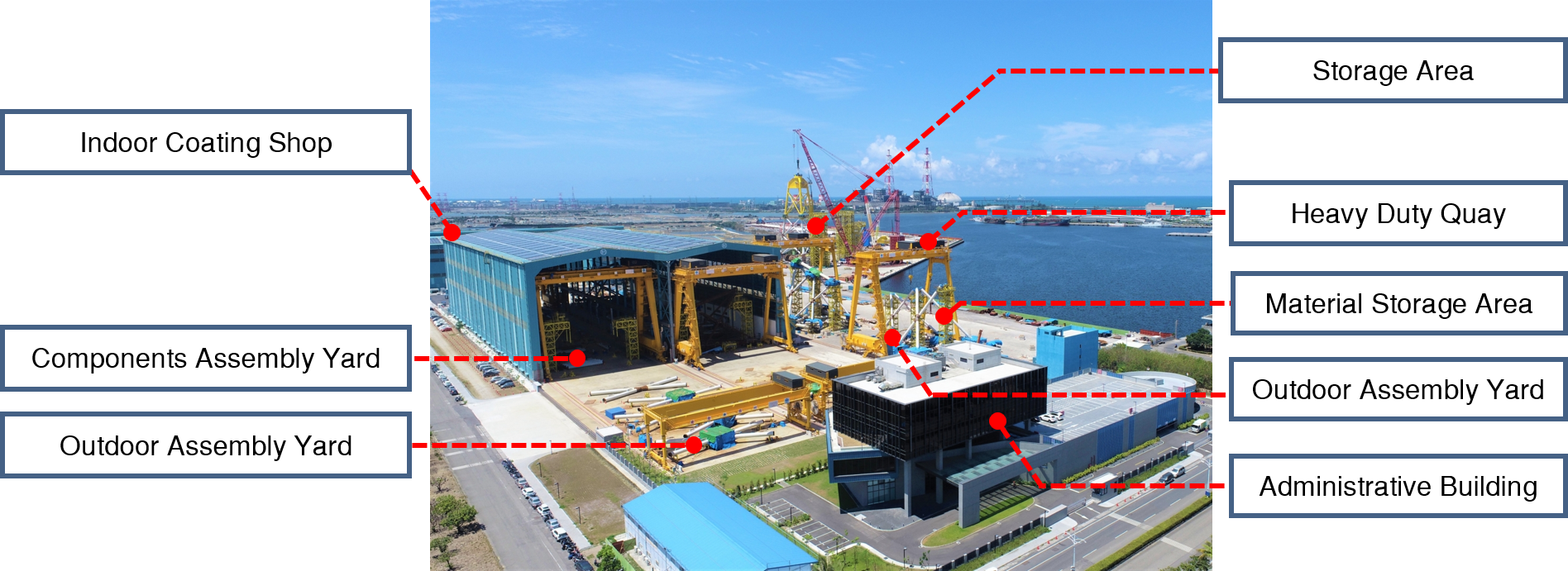

Layout
Site Area
27 hectares in total, including a 10.5-hectare storage area (ground bearing capacity: 15 t/m²)
Lifting Capacity
250-tonne gantry crane: 6 sets
150-tonne gantry crane: 4 sets
50-tonne gantry crane: 2 sets
Assembly Areas
Indoor assembly yard: 2.5 hectares
Outdoor assembly yard: 2.5 hectares
Indoor Coating Shop
Equipped with humidity control (as low as 50%), VOC collection system, and dehumidifying ventilation; suitable for large-scale steel structure coating operations
Heavy Duty Quay
Water depth: -7 meters Length: 210 meters.
Width: 30 meters.
Ground bearing capacity: 30 t/m² 70 t.
Mooring bollard: 18 sets.

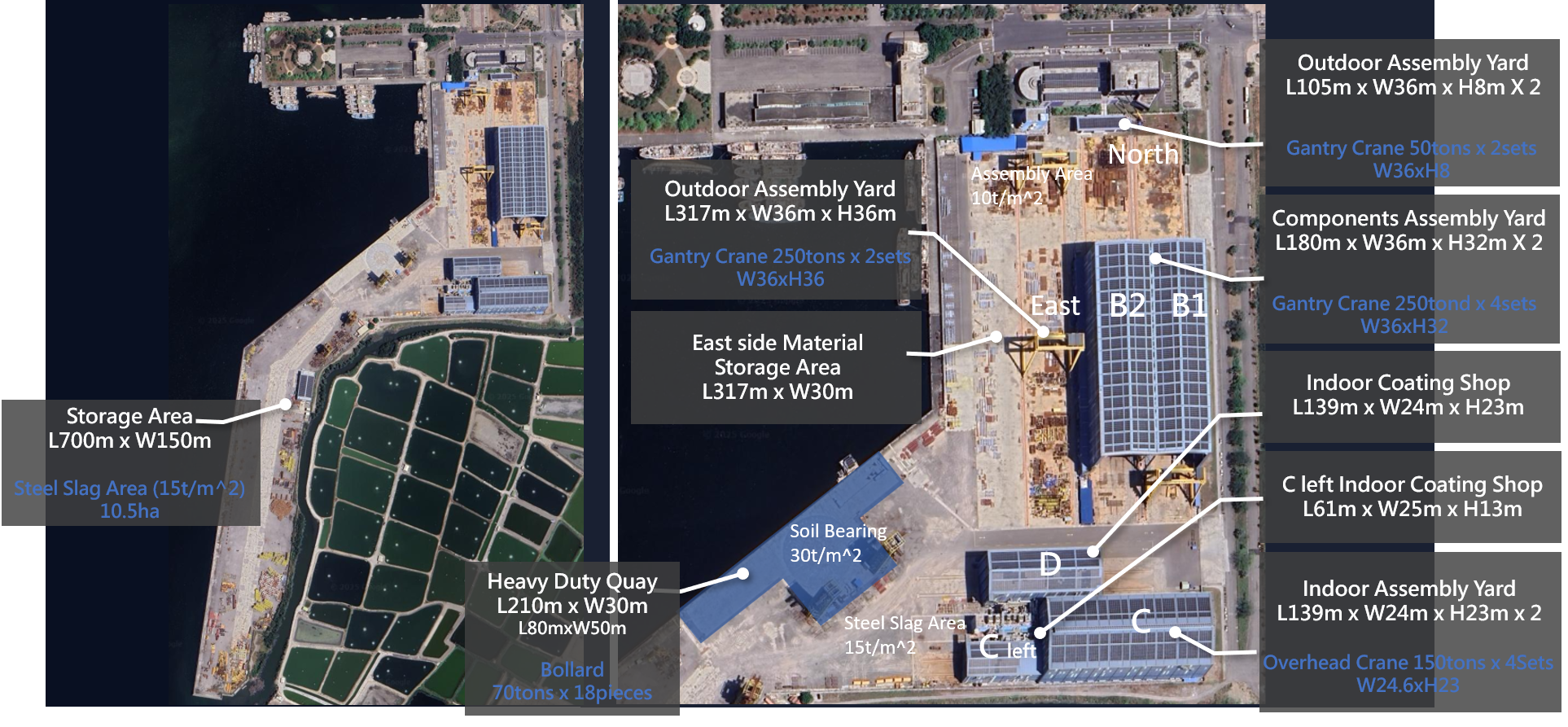

Facility Aerial View

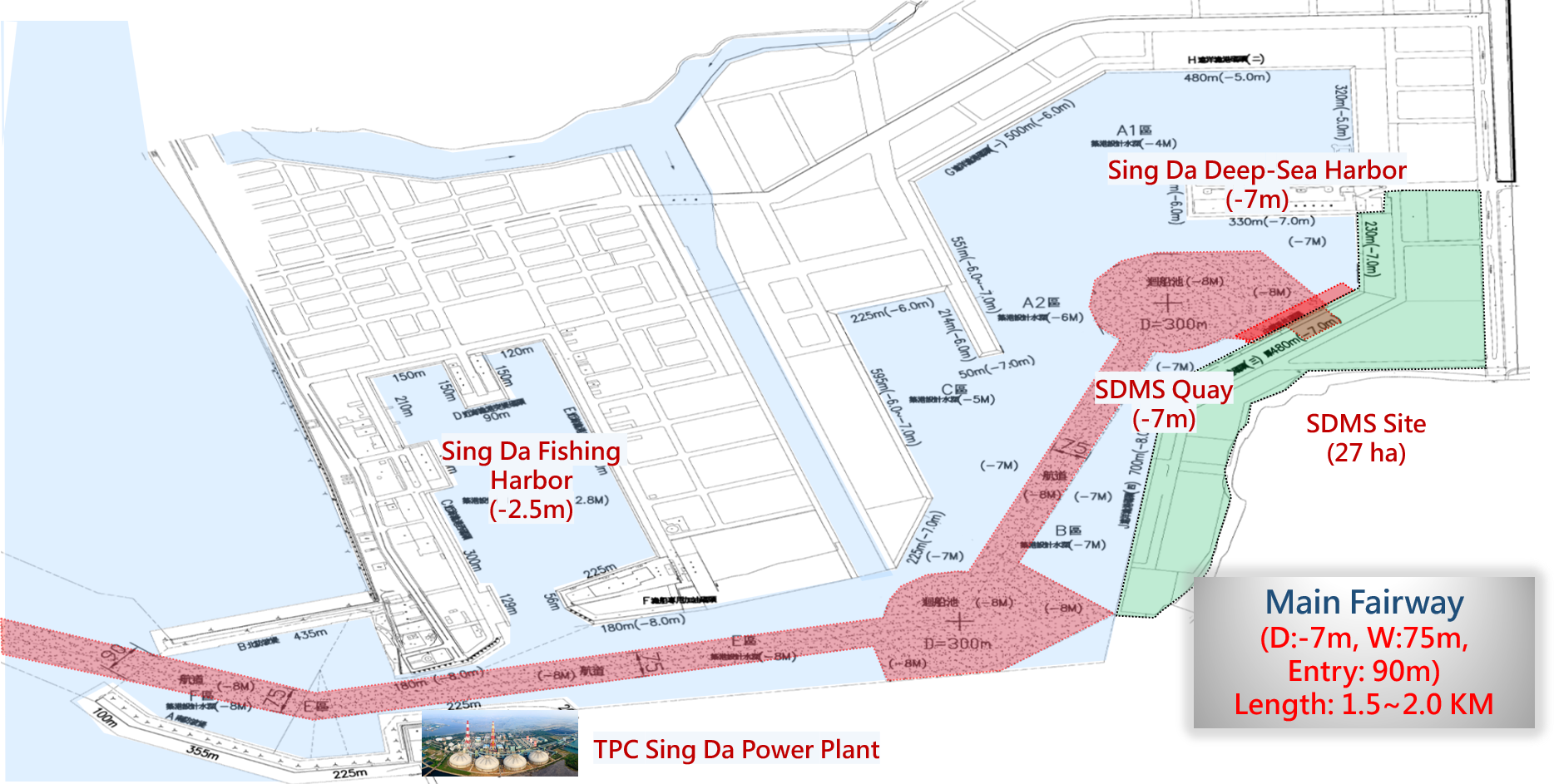

Harbor Facilities
